Infrared Dual-Side Waterproof Module · Interconnected Solution
红外双边防水模组-互联方案 · S10 · 高校互联黑板定制
Industrial waterproof
Dual-side IR
Industrial harness
XS Board bundled

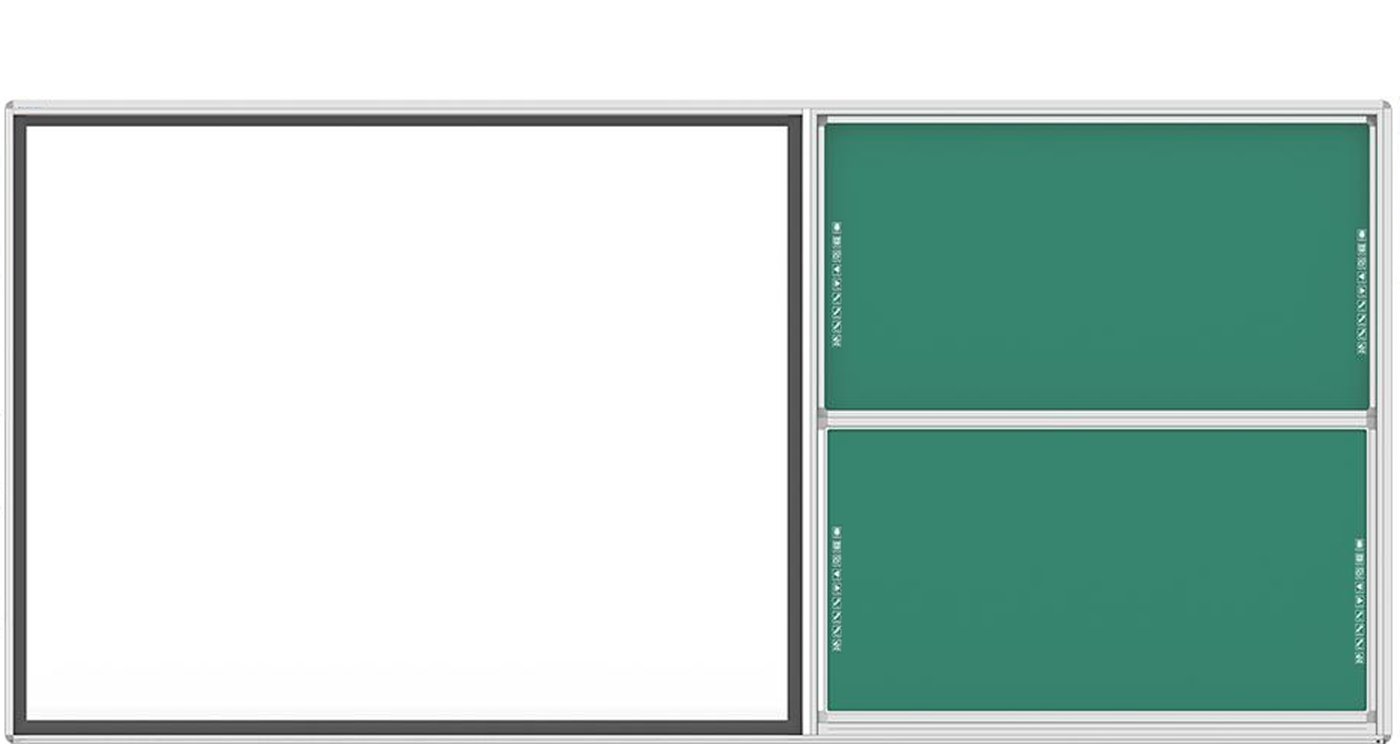

Purpose-built for university interconnected chalk blackboards: top/bottom dual-side IR modules with PC-tube waterproofing, industrial wiring instead of FFC, and lower flatness requirements on large panels — with XS Board software for out-of-box interconnect.

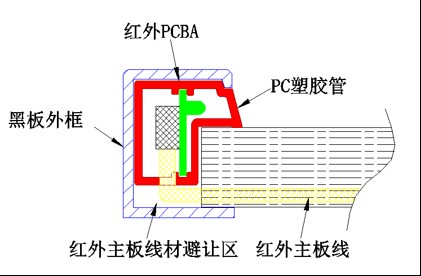

- Waterproof structure — upper/lower PCBA in PC tubes + rubber end caps; wet wipe / water cleaning without short risk

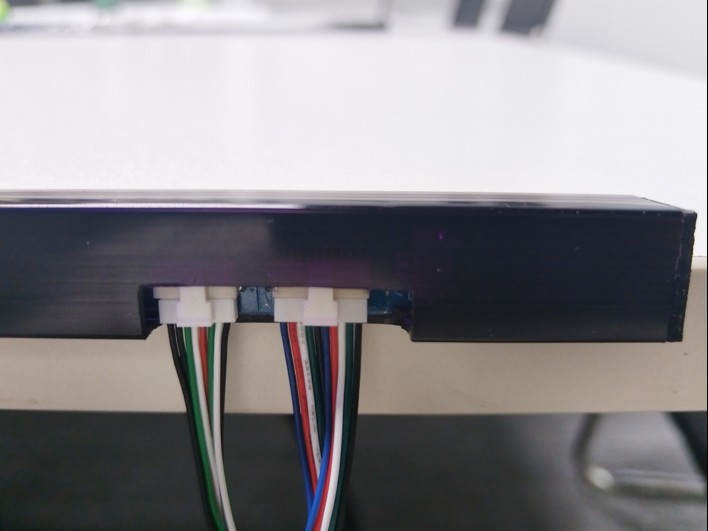

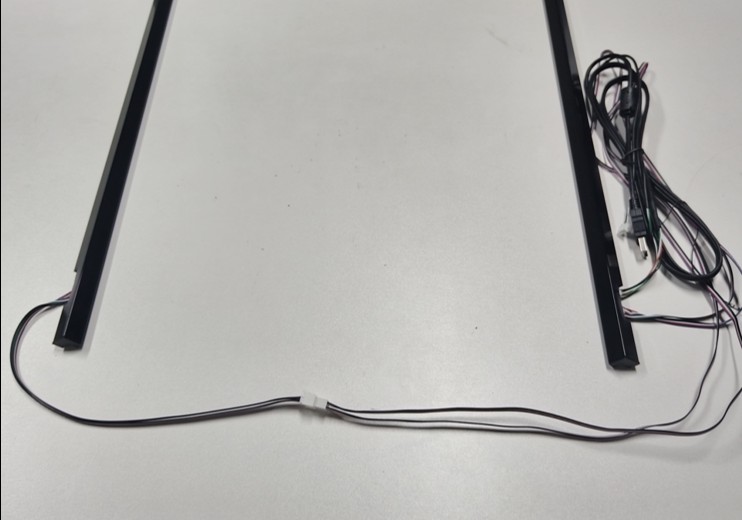

- Industrial harness — replaces thin FFC; pull / bend / aging resistant; easier field install & service
- Dual-side anti-deform — IR only on top & bottom; shorter optical path; algorithm compensates micro-warp on large boards
- Hardware + XS Board — multi-screen sync, page/PDF export, recording, AI assist — no third-party software purchase required
Traditional university IR vs S10 · 传统方案对比
| Item | Traditional 4-side | S10 dual-side |
|---|---|---|
| Waterproof | Often none — wet wipe may short | PCBA in PC tube + sealed ends |
| Flatness / warp | High requirement on large panels | Top+bottom only · shorter path · algorithm assist |
| Assembly | Four sides thread PCBA | Install upper & lower modules only |
| Interconnect cable | FFC — fragile, hard to service | Industrial harness — robust & maintainable |
From S10 interconnected touch solution brochure. Target: university chalk teaching + wet cleaning. Drawings / samples on request.
